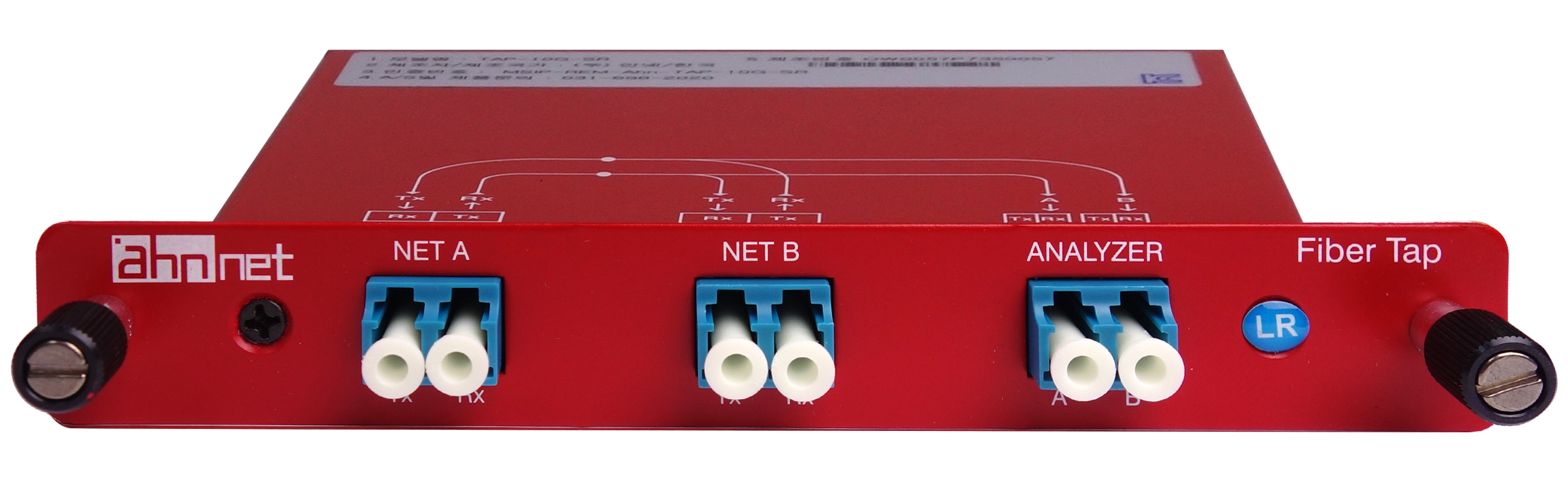

Ahnnet Fiber Tap provides total traffic visibility for monitoring and security devices. Requiring no power, the 10Gigabit Fiber Taps maintain permanent passive access ports without introducing a point of failure or disturbing other network connections. These passive Taps deliver full-duplex monitoring with zero impact on network traffic.
-
- TAP-10G-LR
-
- RMF-6
* Provides passive access without data stream interference or introducing a point of failure
* All-optical design is optimized and tested for 10Gigabit fiber networks
* Fully compatible with 1Gigabit fiber networks
* Permanent in-line installation without affecting network performance
* Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting
* No IP address is needed for the Tap or monitoring device, enhancing monitoring security
* Completely transparent to the network and requires no power
Interfaces
* Network : 1 Link (2 Full duplex, LC connectors)
* Monitoring : 1 Full duplex, LC connectors
* Physical : 10000Base-LR, Singlemode
* Maximum Transmission Speed : 20Gbps (Up+Down)
* Media Interface : Insertion Loss < 5.0dB / < 12.5dB
* Coupling Ratio : 50:50 (Network:Monitoring)
* Wavelength : 1310nm
* Cable Length (Max) : 220 (9um, Singlemode)
Operating Environment
* Temperature : -40 ~ 80℃
* Humidity : 85%@85℃ (Non condensing)
* Dimensions : 31 x 141 x 129 (mm)
* Type : Standalone / Rack Mount (6 slots)
* TAP-10G-LR : 10Gigabit Fiber TAP, LR, Singlemode, 1310nm, LC connectors, 1×1
* RMF-6 : 1RU, Rackmount Frame, Up to 6 units available
