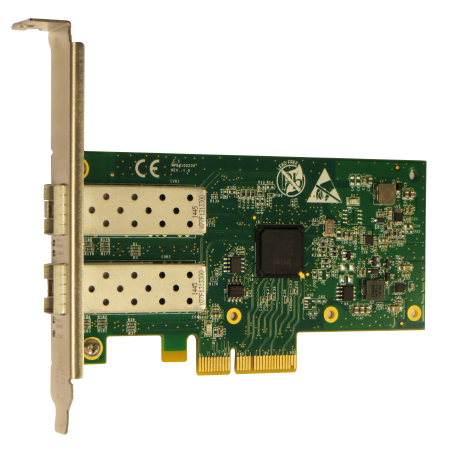

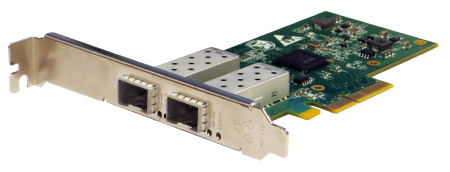

Dual Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM2 Based.
Silicom’s Dual Port SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP Gigabit Ethernet network interface card that is based on a single chip, non-Bridged Dual port GBE controller.
Silicom’s Dual Port SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Silicom’s Dual Port SFP Gigabit Ethernet Server adapter is based on Intel i350 Dual port Gigabit Ethernet MAC+PHY of Intel Controller. The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV).
Performance Features :
* 8 Transmit and 8 Receive queues per port
* Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
* Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
* Support for up to 8 virtual function ( VFs)
* Partial replication of PCI Configuration space
* Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
* Support Direct Cache Access (DCA)
* Support Intel I/O Acceleration Technology v3.0.
* TSO interleaving for reduced latency
* Minimized device I/O interrupts using MSI and MSI-X
* UDP, TCP and IP checksum offload
* UDP and TCP transmit segmentation offload (TSO). machine
* SCTP receive and transmit checksum offload
* Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
* EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods
SFP Gigabit Ethernet :
* Gigabit Ethernet Adapters with SFP cage support:
– 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
– 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
– Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
* 2PortLink synchronization
* Optional SGMII mode (future support)
Common Key features :
* Support PCI Express Base Specification 2.1 (5 GTs)
* High performance, reliability, and low power use in Intel i350 Dual integrated MAC + PHY and SERDES chip Controllers
* Ultra deep, packet buffer per channel lowers CPU utilization
* Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
* Server class reliability, availability and performance features:
– Link Aggregation and Load Balancing
* Priority queuing – 802.1p layer 2 priority encoding
* Virtual LANs –802.1q VLAN tagging
* Jumbo Frame (9.5KB)
* 802.x flow control
* Multicast/ broadcast Packet replication
* Supports Vital Product Data (VPD)
* LEDs indicators for link/Activity/Speed status
* Operating system support : Linux, Windows, VMware
* Interface Standard : PCI-Express Base Specification Revision 2.1 ( 5 GTs)
* Board Size : Low profile short add-in card: 127mm X 68.91mm (5.0”X 2.713”)
* PCI Express Card Type : X4 Lane
* PCI Express Voltage : +12V +- 8%
* PCI Connector : Gold Finger: X4
* Controllers : Intel i350AM2
* I/O : 2 x SFP Transceivers located on internal bracket
* Weight : 100gr (3.528 oz)
* Power Consumption (-SX) : Both ports at 1G: 3.12W, 0.26A @12V
* Power Consumption (-LX) : Both ports at 1G: 3.6W, 0.30A @12V
* Power Consumption (-T) : Both ports at 1G: 3.6W, 0.30A @12V
* Holder : Metal Bracket: Full Height/Low profile Height
* Operating Humidity : 0%–90%, non-condensing
* Operating Temperature : 0°C – 45°C (32°F – 113°F)
* Storage : -40°C–65°C (-40°F–149°F)
* PE2G2SFPI35 : Dual Port SFP Gigabit Ethernet PCI Express Server Adapter
* PE2G2SFPI35-SX : Dual Port SFP (SX) Gigabit Ethernet PCI Express Server Adapter
* PE2G2SFPI35-LX : Dual Port SFP (LX) Gigabit Ethernet PCI Express Server Adapter
* PE2G2SFPI35-T : Dual Port SFP (T) Gigabit Ethernet PCI Express Server Adapter
