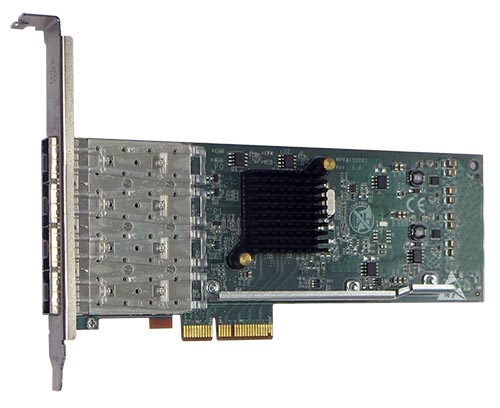

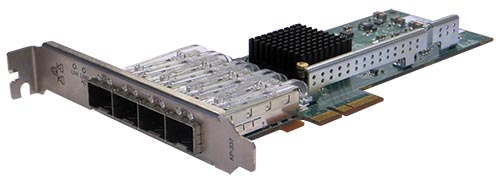

Quad Port SFP Gigabit Ethernet PCI Express Server Adapter Intel® i350AM4 Based.
Silicom’s Quad Port SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP Gigabit Ethernet network interface card that is based on a single chip, non-Bridged quad port GBE controller.
Silicom’s Quad Port SFP Gigabit Ethernet PCI Express Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.
Silicom’s Quad Port SFP Gigabit Ethernet server adapter is based on Intel i350 Quad port Gigabit Ethernet MAC+PHY of Intel Controller.
The Silicom i350 support PCI-SIG Single-Root I/O virtualization and sharing specification (SR-IOV). Silicom’s Quad Port SFP Gigabit Ethernet PCI Express Server adapter enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.
Silicom’s Quad Port SFP Gigabit Ethernet PCI Express Server adapter has an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.
Silicom’s Quad Port SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Performance Features :
* 8 Transmit and 8 Receive queues per port
* Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
* Support PCI-SIG Single-Root I/O virtualization Rev 1.1.
* Support for up to 8 virtual function ( VFs)
* Partial replication of PCI Configuration space
* Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port
* Support Direct Cache Access (DCA)
* Support Intel I/O Acceleration Technology v3.0.
* TSO interleaving for reduced latency
* Minimized device I/O interrupts using MSI and MSI-X
* UDP, TCP and IP checksum offload
* UDP and TCP transmit segmentation offload (TSO). machine
* SCTP receive and transmit checksum offload
* Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
* EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods
SFP Gigabit Ethernet :
* Gigabit Ethernet Adapters with SFP cage support:
– 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver
– 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
– Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
* 2PortLink synchronization
* Optional SGMII mode (future support)
Common Key features :
* Support PCI Express Base Specification 2.1 (5 GTs)
* High performance, reliability, and low power use in Intel i350 Dual integrated MAC + PHY and SERDES chip Controllers
* Ultra deep, packet buffer per channel lowers CPU utilization
* Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
* Server class reliability, availability and performance features:
– Link Aggregation and Load Balancing
* Priority queuing – 802.1p layer 2 priority encoding
* Virtual LANs –802.1q VLAN tagging
* Jumbo Frame (9.5KB)
* 802.x flow control
* Multicast/ broadcast Packet replication
* Supports Vital Product Data (VPD)
* LEDs indicators for link/Activity/Speed status
* Operating system support : Linux, Windows, VMware
* Interface Standard : PCI-Express Base Specification Revision 2.1 ( 5 GTs)
* Board Size : Low profile short add-in card: 165.15mm x 68.91mm (6.502”X2.713”)
* PCI Express Card Type : X4 Lane
* PCI Express Voltage : +12V +- 8%
* PCI Connector : Gold Finger: X4
* Controllers : Intel i350AM4
* I/O : 4 x SFP located on edge of the board
* Weight : 100gram (3.528 oz)
* Power Consumption (-SX) : Both ports at 1G: 4.8W, 0.4A @12V
* Power Consumption (-LX) : Both ports at 1G: 5.64W, 0.47A @12V
* Power Consumption (-T) : Both ports at 1G: 7.44W, 0.62A @12V
* Holder : Metal Bracket: Full Height/Low profile Height
* Operating Humidity : 0%–90%, non-condensing
* Operating Temperature : 0°C – 45°C (32°F – 113°F)
* Storage : -40°C–65°C (-40°F–149°F)
* PE2G4SFPI35L : Quad Port SFP Gigabit Ethernet PCI Express Server Adapter
* PE2G4SFPI35L-SX : Quad Port SFP (SX) Gigabit Ethernet PCI Express Server Adapter
* PE2G4SFPI35L-LX : Quad Port SFP (LX) Gigabit Ethernet PCI Express Server Adapter
