The MAESTRO family helps network administrators build next-generation fabric visibility networks. Monitoring is possible from multiple network traffic sources using Tap, Aggregation, Replication, Tag, Strip, Filter, Load-balancing, and Packet Slicing functions, and a monitoring environment can be built without a mirroring (SPAN) port.

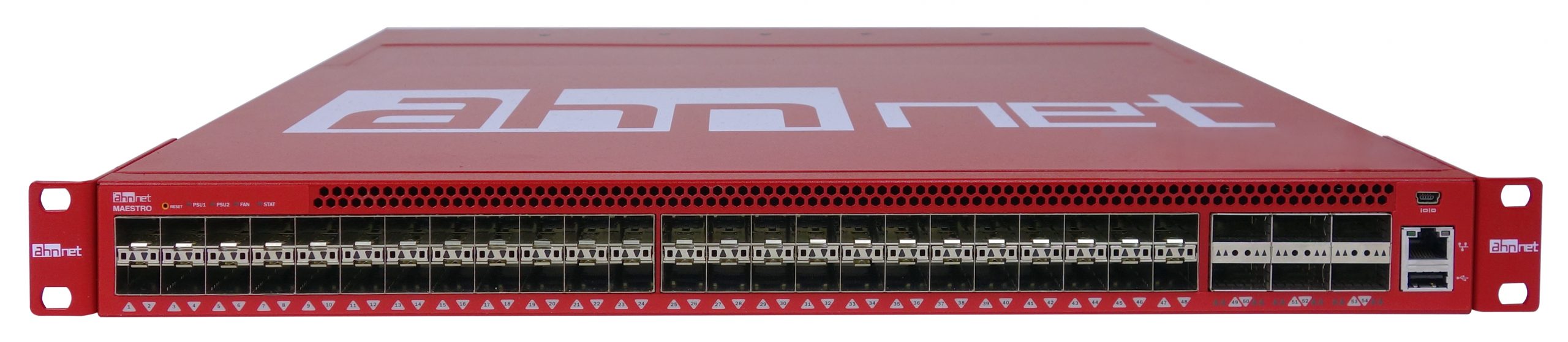

MAESTRO-E48X6Q product applies advanced silicon technology, support 10G/25G (SFP+/SFP28) 48 ports, and 40G/100G (QSFP+/QSFP28) 8 ports. It provides an optimal monitoring environment in 10Gbps ~ 100Gbps networks. 40G/100G (QSFP+/QSFP28 ports can be split into 4x 10G/25G ports, respectively. It supports 1.8Tbps Backplane performance even in extreme environments with the smallest unit packet size.
-
- E48X6Q
* Silicon Capacity 1.8Tbps
* 48x 1G/10G/25G (SFP/SFP+/SFP28)
* 6x 40G/100G (QSFP+/QSFP28)
* Breakout : QSFP28 > 4x SFP28, QSFP+ > 4x SFP+ Splitter Cable
* Symmetric Hash Load-balancing
* CONSOLE/SSH/WEB/SNMP
* Aggregation, Replication, Filter, Tag, Load-balancing and etc
* Management : 10/100/1000 Ethernet, CONSOLE
* Any to Any flow configurations
* Supports Mirror
* Redundant PSU (Hot-swappable)
* 4x FANs (How-swappable)
* 19′ 1RU (Optional Sliding Rail Kit)
* KC Certificate
Interfaces
* 48x 1G/10G/25G(SFP/SFP+/SFP28)
* 6x 40G/100G(QSFP+/QSFP28)
* 1x RJ45 Ethernet
* 1x RJ45 CONSOLE (RS232)
* 1x USB
* QSFP+/QSFP28 Fiber Optics; QSFP+/QSFP28 DAC Cable
Breakout
* QSFP28 > 4xSFP28 Splitter Cable, QSFP+ > 4xSFP+ Splitter Cable
* IEEE 802.3ae 10 Gigabit Ethernet
* IEEE 802.3aq 10GBASE-LRM
* IEEE 802.3by 25 Gigabit Ethernet SFP+ MSA, Revision 4.1
* Direct-Attach Copper Support up to 3 Meters
LED
* System : System Status LED, PSU Status LED, FAN Status LED, Reset Button
* Interfaces : Link/Activity
Management
* Ethernet : 10/100/1000BASE-T Category 5, Category 5e, Category 6 UTP
* CONSOLE : 115200 Baud 8 Bit Data No Parity 1 Stop Bit
Electrical
* Dual 500W/800W High Efficiency 100-240V AC 50-60Hz Class I
* 1+1 Redundant Power Supply
Mechanical
* Dimension : 410 x 440 x 44 mm
* Weight : < 10kg
* Fans : 4x Front to Back Air Flow
Environment
* Operating Temperature : 0º ~ 45º C
* Humidity : 20 ~ 95% (Non-condensing)
Certifications
* KC certificate
* E12X : 12x 10G/25G Ports
* E24X : 24x 10G/25G Ports
* E36X : 36x 10G/25G Ports
* E48X : 48x 10G/25G Ports
* E12X6Q : 12x 10G/25G Ports + 6x 40G/100G Ports
* E24X6Q : 24x 10G/25G Ports + 6x 40G/100G Ports
* E36X6Q : 36x 10G/25G Ports + 6x 40G/100G Ports
* E48X6Q : 48x 10G/25G Ports + 6x 40G/100G Ports
