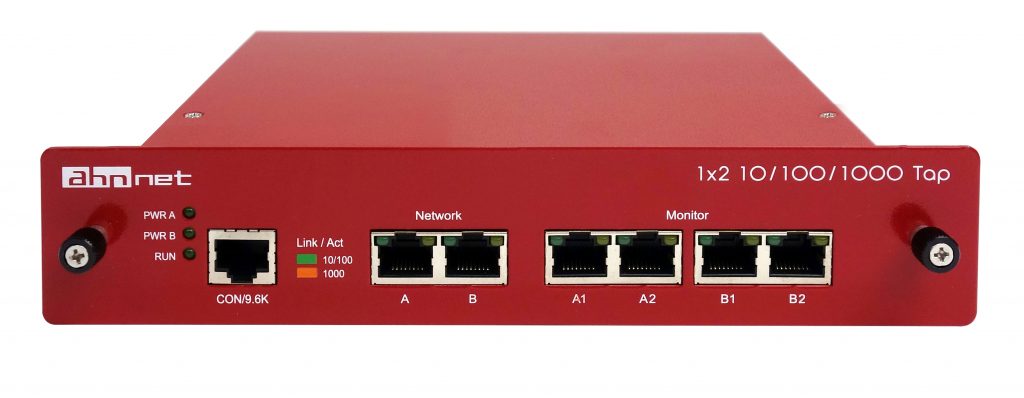

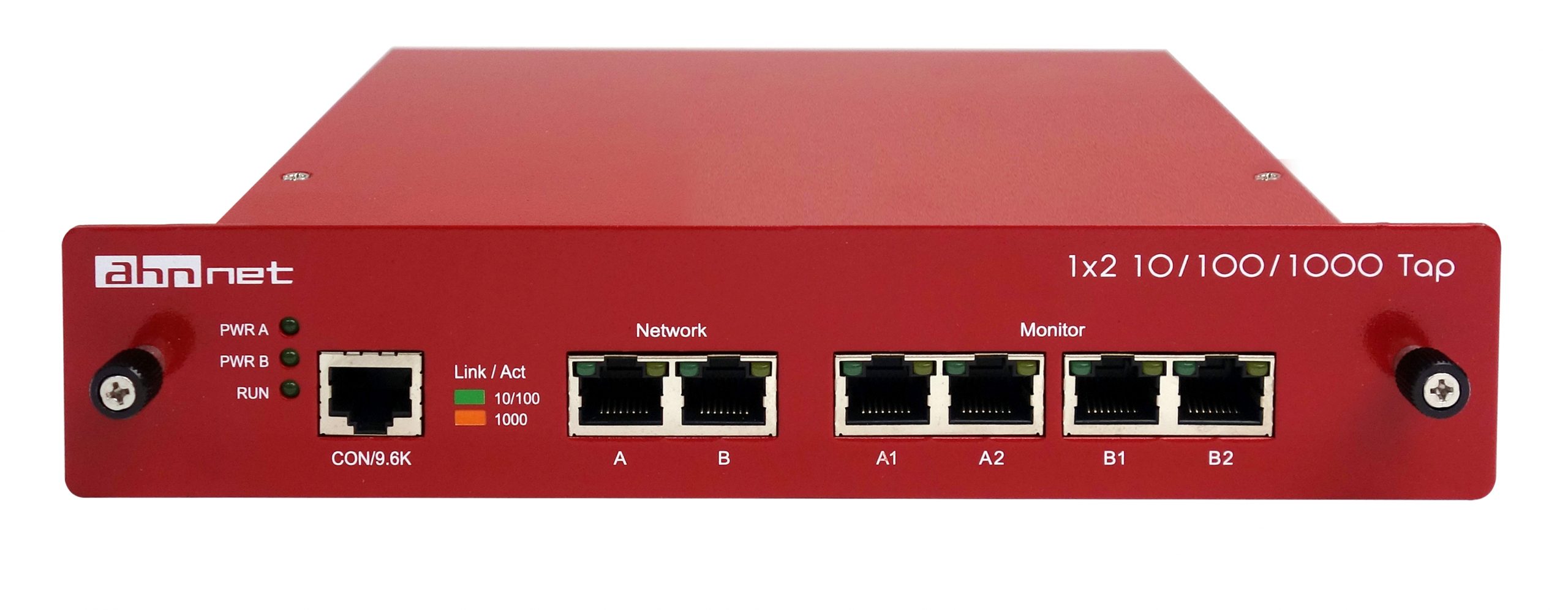

Ahnnet 10/100/1000 Copper Tap provides total traffic visibility for monitoring and security devices. Copper Taps maintain permanent passive access ports without introducing a point of failure or disturbing other network connections. These passive Taps deliver full-duplex monitoring with zero impact on network traffic.
-
- TAP-1G-CU2
-
- RMF-2
* Provides passive access without data stream interference or introducing a point of failure
* Optimized and tested for 10/100/1000 copper networks
* Permanent in-line installation without affecting network performance
* Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting
* No IP address is needed for the Tap or monitoring device, enhancing monitoring security
* Completely transparent to the network
Interfaces
* Network : 2x 10/100/1000Mbps, Full Duplex, Network Ports
* Monitoring : 4x 10/100/1000Mbps, Half Duplex, Monitor Ports
* 1x RJ45 CONSOLE (RS232)
* Physical : 10/100/1000Base-T
* Maximum Transmission Speed : 2Gbps (Up+Down)
* Media Interface : UTP RJ45
* Cable Length (Max) : 100m
Performance
* Capacity : 12Gbps
* Throughput : < 9Mpps
LED
* System : System Status LED, PSU Status LED, Reset Button
* Interfaces : Link/Activity
Management
* CONSOLE : 9600 Baud 8 Bit Data No Parity 1 Stop Bit
Electrical
* High Efficiency 100-240VAC 50-60Hz, DC 12V 0.6A
* 1+1 Redundant Power Adapter
* Power Consumption : Typical 8W, Max 12W
Mechanical
* Dimension : 178 x 148 x 44mm (W x D x H)
* Weight : < 0.9kg
* Fans : No FANs
Environment
* Operating Temperature : 0º ~ 50º C
* Humidity : 10 ~ 90% (Non-condensing)
Certifications
* KC certificate
* TAP-1G-CU2 : 10/100/1000 Copper TAP, Breakout 1×2

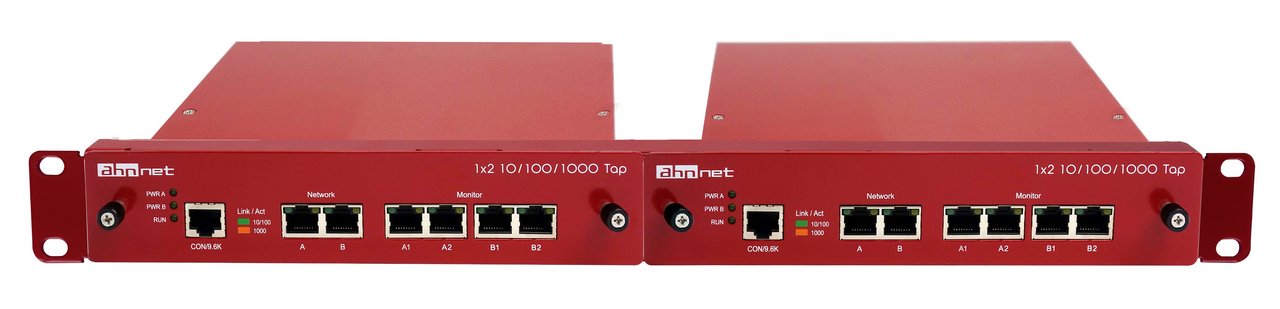

* RMF-2 : 1RU, Rackmount Frame, Up to 2 units available
