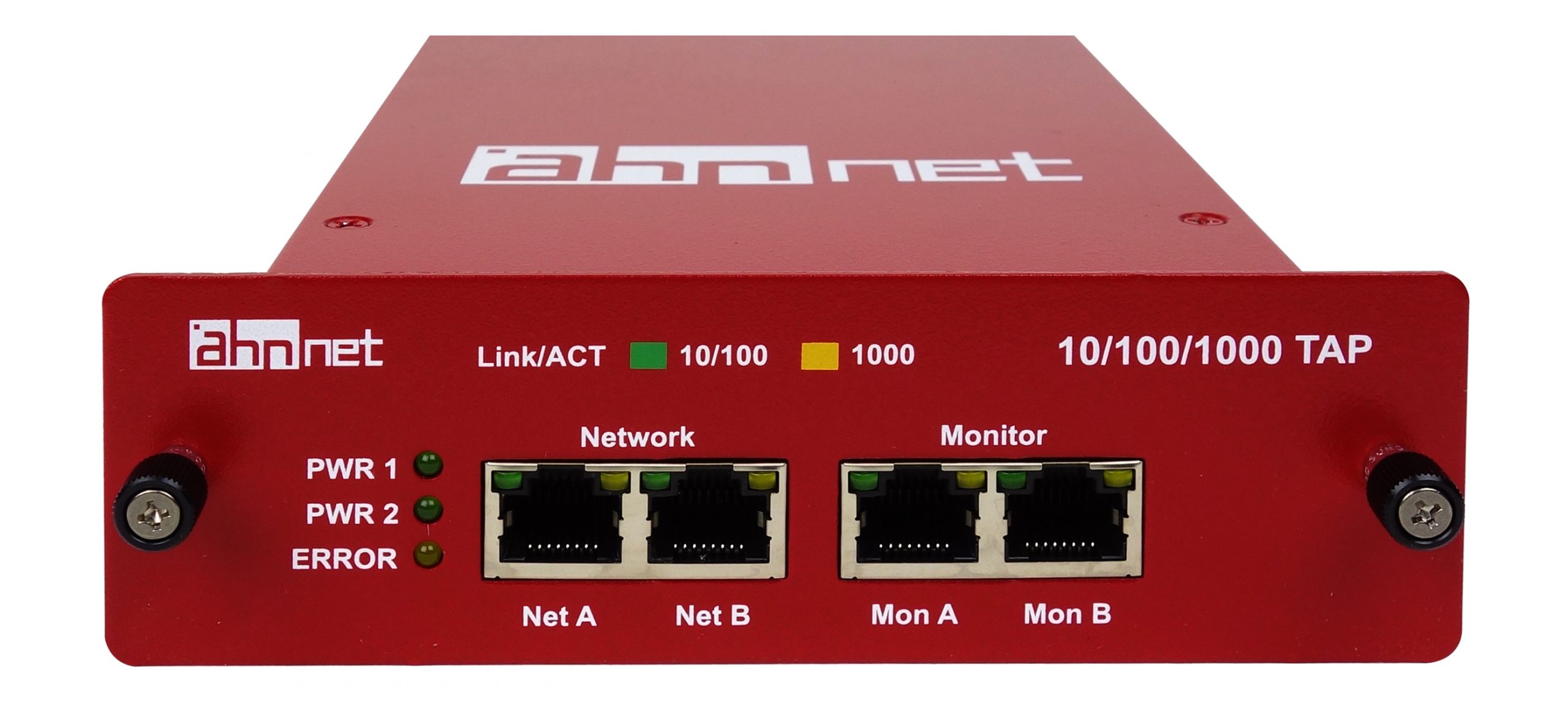

Ahnnet 10/100/1000 Copper Tap provides total traffic visibility for monitoring and security devices. Copper Taps maintain permanent passive access ports without introducing a point of failure or disturbing other network connections. These passive Taps deliver full-duplex monitoring with zero impact on network traffic.
-
- TAP-1G-CU
-
- RMF-3
* Provides passive access without data stream interference or introducing a point of failure
* Optimized and tested for 10/100/1000 copper networks
* Permanent in-line installation without affecting network performance
* Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting
* No IP address is needed for the Tap or monitoring device, enhancing monitoring security
* Completely transparent to the network
Interfaces
* Network : 2x 10/100/1000Mbps, Full Duplex, Network Ports
* Monitoring : 2x 10/100/1000Mbps, Half Duplex, Monitor Ports
* Physical : 10/100/1000Base-T
* Maximum Transmission Speed : 2Gbps (Up+Down)
* Media Interface : UTP RJ45
* Cable Length (Max) : 100m
Performance
* Capacity : 8Gbps
* Throughput : < 6Mpps
LED
* System : System Status LED, PSU Status LED, Reset Button
* Interfaces : Link/Activity
Management
* DIP switches to select speed and duplex
Electrical
* High Efficiency 100-240VAC 50-60Hz, DC 12V 0.6A
* 1+1 Redundant Power Adapter
* Power Consumption : Typical 8W, Max 12W
Mechanical
* Dimension : 114 x 178 x 44mm (W x D x H)
* Weight : < 0.8kg
* Fans : No FANs
Environment
* Operating Temperature : 0º ~ 50º C
* Humidity : 10 ~ 90% (Non-condensing)
Certifications
* KC certificate
* TAP-1G-CU : 10/100/1000 Copper TAP

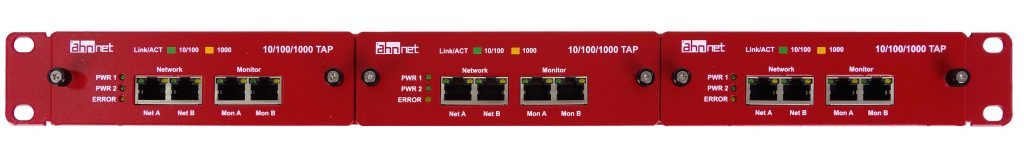

* RMF-3 : 1RU, Rackmount Frame, Up to 3 units available
