Dual Port QSFP28 Ethernet Capture Card

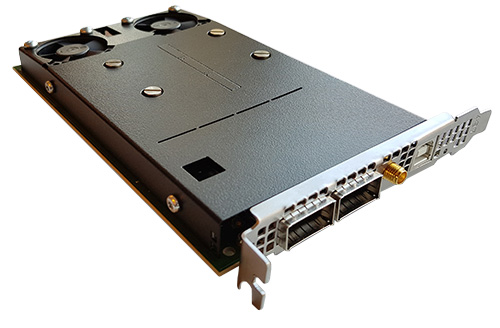

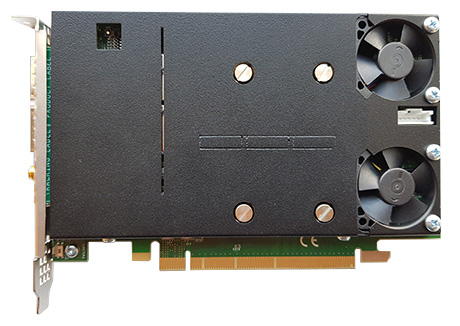

The Silicom fbC2CGg5 Dual Capture Card offers network connectivity and capture to host memory with zero packet loss and with hardware packet processing. The 2xQSFP28 slots allow link speed support for 2x100GE/40GE/25GE, 8x10GE and 8x25GE. The fbC2CGg5 card is based on cutting edge Xilinx FPGA technology in the Kintex UltraScale+ series, providing packet filtering, advanced processing, traffic management, load balancing and host offloading mechanisms.
This high performance hardware platform connects to the network using QSFP28/QSFP+/SFP28 modules and performs packet processing, while delivering a sustained throughput to host memory of up to 107 Gbps, using the standard PCIe connector with full support for standard gen3 x16. The fbC2CGg5 uses a single-slot x16 lane PCIe solution. The card is prepared for inter-card connection and for second-slot connectivity for double PCIe bandwidth to the host system. NUMA specific memory allocation allows for effective traffic management and load balancing in NUMA environments.
-
- fbC2CGg5
-
- fbC2CGg5
* 2 x 100GE/40GE/25GE, 8 x 10GE and 8 x 25GE
* PCIe form-factor: Full height, half length (111.15 x 167.65 mm)
* 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
* 107 Gbps sustained capture to host
* 16-lane PCIe Gen3
* Precision timestamping
* 3.2 nano second resolution
* Microsecond latency
* fbCAPTURE API
* Hardware filtering and traffic distribution
* Application acceleration and scalability
Interfaces:
* Support Forward Error Correction (FEC) on 100GE
* Physical interface: 2 x QSFP28 slots
* 10GE supported through break-out cable assemblies
* 2 x 25 SFP28 through QSA28 adaptor
* Supported QSFP28 modules (25GE/100GE):
– SR4, LR4, PSM4, CWDM4/CLR4, CR4 (DAC), ER4
– Appropriate 4 x 25GE break-out modules
* Supported QSFP+ modules (10GE/40GE):
– SR4, LR4, LM4, PSM4/IR4, CDWM4, ER4, ZR4, BiDi, CR4
– Appropriate 4 x 10GE break-out modules
– Ethernet PHY directly embedded in FPGA
PCI:
* 16 lane PCIe Gen 3, PCIe compliant
Host infterface:
* 64 logical channels that can be connected to DMA or egressed to physical output ports
Memory:
* On board buffering for application robustness
* 16 GB 72-bit Error-correcting code (ECC) DDR4 RAM
Performance:
* Capture rate (bursts): Line rate (200 Gbps)
* Capture rate (sustained): 107 Gbps to host memory
Environment:
* Full height, ½ length. 111.15 x 167.65 mm with bracket
* Weight: 485 g
* Operating temperature: 0 – 55°C, 30 – 130°F
* Operating humidity: 20 – 80%
* Hardware compliance: RoHS, CE
* Active cooling, with fan sensor
* Passive cooling (option)
* fbC2CGg5-8x10G for 10GE
