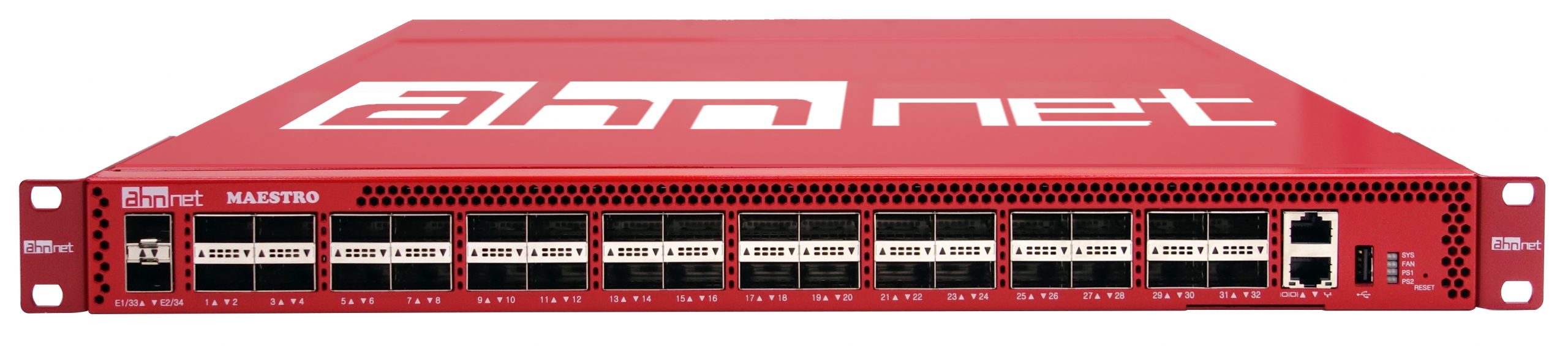

The MAESTRO family is designed to enable network administrators to build next-generation fabric visibility infrastructures with enhanced flexibility, scalability, and operational efficiency. Moving beyond the limitations of traditional SPAN-based monitoring, it captures traffic from multiple network segments and intelligently processes it to deliver only relevant data to security, monitoring, and analytics tools. This approach not only reduces unnecessary traffic load on analysis systems but also improves overall visibility and performance.
By incorporating advanced traffic handling capabilities such as aggregation, replication, filtering, tagging, stripping, load balancing, and packet slicing, MAESTRO provides precise control over how network data is distributed and analyzed. It allows organizations to seamlessly integrate diverse monitoring tools while ensuring that each tool receives the exact traffic it requires.
Designed for modern high-speed network environments, MAESTRO supports scalable deployments across a wide range of infrastructures, from enterprise networks to large-scale data centers and telecom environments. Its architecture is optimized to handle high volumes of traffic with low latency and high reliability, providing a strong foundation for achieving comprehensive network visibility without compromising performance.
* Silicon Capacity 3.2Tbps
* 32x 40G/100G (QSFP+/QSFP28)
* Breakout : QSFP+ > 4x SFP+, QSFP28 > 4x QSFP+ Splitter Cable
* VxLAN/Outer/Inner IP Header Hash Load-balancing
* Symmetric Load-balancing
* CONSOLE/SSH/WEB/SNMP
* Aggregation, Replication, Filtering, Tagging, Load-balancing and etc
* Management : 10/100/1000 Ethernet, CONSOLE
* Any to Any flow configurations
* Redundant PSU (Hot-swappable)
* 4x FANs (How-swappable)
* 19′ 1RU
* KC Certificate
Interfaces
* 32x 40G/100G(QSFP+/QSFP28)
* 1x RJ45 Ethernet
* 1x RJ45 CONSOLE (RS232)
* 1x USB
* QSFP+/QSFP28 Fiber Optics; QSFP+/QSFP28 DAC Cable
Breakout
* QSFP28 > 4x SFP28 Splitter Cable, QSFP+ > 4x SFP+ Splitter Cable
* IEEE 802.3ae 10 Gigabit Ethernet
* IEEE 802.3aq 10GBASE-LRM
* IEEE 802.3by 25 Gigabit Ethernet SFP+ MSA, Revision 4.1
* Direct-Attach Copper Support up to 3 Meters
LED
* System : System Status LED, PSU Status LED, FAN Status LED, Reset Button
* Interfaces : Link/Activity
Management
* Ethernet : 10/100/1000BASE-T Category 5, Category 5e, Category 6 UTP
* CONSOLE : 115200 Baud 8 Bit Data No Parity 1 Stop Bit
Electrical
* Dual 550W/800W High Efficiency 100-240V AC 50-60Hz Class I
* 1+1 Redundant Power Supply
* Power Consumption: Typical 300W, Max 480W
Mechanical
* 1U Rack-mountable
* Dimension : 430mm x 440mm x 44mm
* Weight : < 10kg
* Fans : 4x Front to Back Air Flow
Environment
* Operating Temperature : 0º ~ 45º C
* Humidity : 20 ~ 95% (Non-condensing)
Certifications
* KC certificate
* A16Q : 16x 40G/100G Ports
* A32Q : 32x 40G/100G Ports
Series.
* S16Q : 16x 40G/100G Ports
* S32Q : 32x 40G/100G Ports
