Ahnnet Fiber Tap provides total traffic visibility for monitoring and security devices. Requiring no power, the 100Gigabit Fiber Taps maintain permanent passive access ports without introducing a point of failure or disturbing other network connections. These passive Taps deliver full-duplex monitoring with zero impact on network traffic.
-
- HDTAP-100G-SR
-
- RMF-24
* Provides passive access without data stream interference or introducing a point of failure
* All-optical design is optimized and tested for 100Gigabit fiber networks
* Fully compatible with 40Gigabit fiber networks
* Permanent in-line installation without affecting network performance
* Passes all full-duplex traffic (including errors) from all layers for comprehensive troubleshooting
* No IP address is needed for the Tap or monitoring device, enhancing monitoring security
* Completely transparent to the network and requires no power
Interfaces

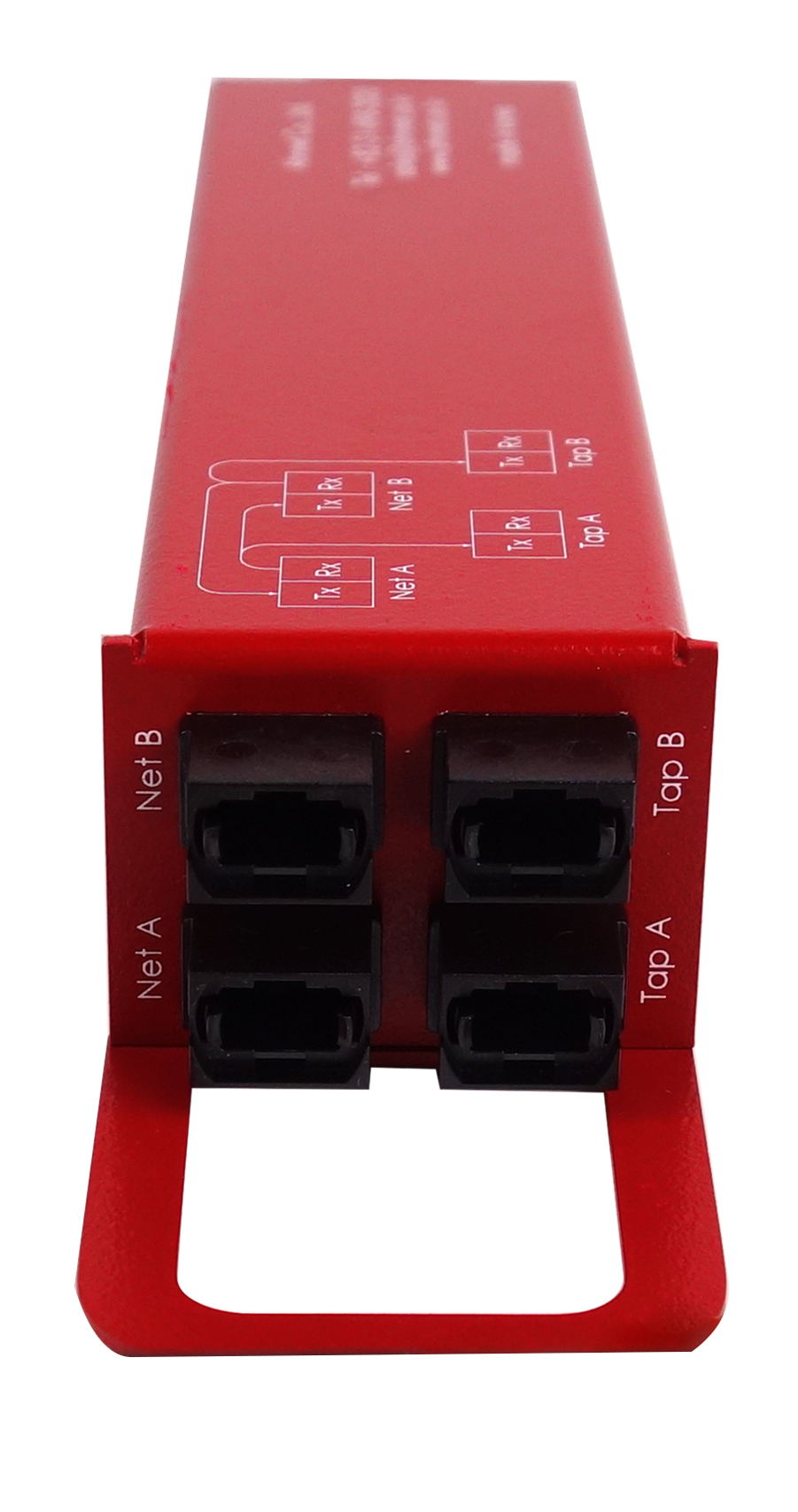

* Network : 1 Link (2 Full duplex, MPO connectors)
* Monitoring : 1 Full duplex, MPO connectors
* Physical : 100GBase-SR4, Multimode
* Maximum Transmission Speed : 200Gbps (Up+Down)
* Media Interface : Insertion Loss < 5.0dB / < 12.5dB
* Coupling Ratio : 50:50 (Network:Monitoring)
* Wavelength : 850nm
* Cable Length (Max) : 100 (50um, Multimode)
Operating Environment
* Temperature : -40℃ ~ 85℃
* Humidity : 0% ~ 90% (Non condensing)
* Dimensions : 40 x 159 x 34 (mm)
* Type : Standalone / Chassis (12 slots)

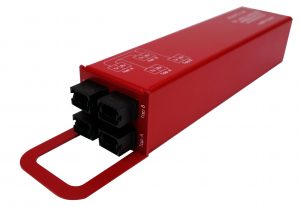

* HDTAP-100G-SR : 100Gigabit Fiber TAP, SR4, Multimode, 850nm, MPO connectors, 1×1

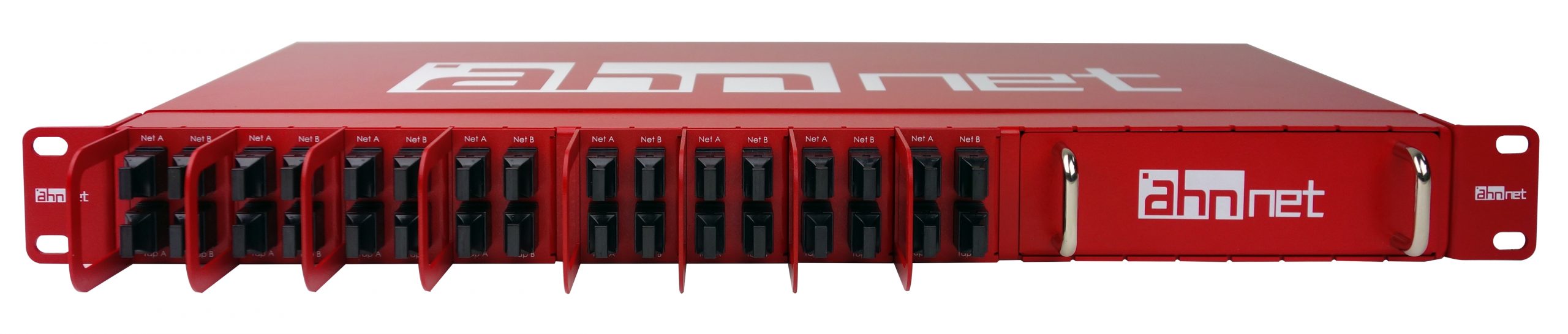

* RMF-24 : 1RU, Chassis, Up to 12 units available
